TEKCN TC-350 Multi-function OTDR

Overview:

TEKCN TC-350 OTDR (Optical Time Domain Reflectometer) adopts a 4.3-inch color capacitive touch screen, which is easy to operate. It has simple parameter settings and intelligent measurement make the operation simpler and more efficient.

The model is compact, lightweight, and easy to carry. The large capacity battery ensures 12-hour ultra long measurement time, providing guarantee for field testing operations.

TEKCN TC-350 OTDR is mainly used to measure the length, splicing loss, optical connector loss, optical line breakpoint, average loss, return loss, connection quality, etc. of optical fiber cables. It has automatic optical protection function to prevent damage to optical modules.

It can be widely used in the fields of engineering construction, fault repair, fiber optic line maintenance, engineering acceptance, research and production of fiber optic cables in fiber optic communication systems.

Functions:   ⚫ OTDR ⚫ Power Meter ⚫ VFL ⚫ Light Source ⚫ Event Map ⚫ Network cable sequence testing ⚫ Cable finding ⚫ LED light ⚫ SD card for storage ⚫ USB port for data transfer ⚫ Support SOR test report

Configuration: ⚫ OTDR ⚫ Connector cleaning pen*1 ⚫ Adapter to convert to FC, LC, SC *1 ⚫ Carry bag*1 ⚫ Charger*1 ⚫ Battery (Build-in OTDR)*1

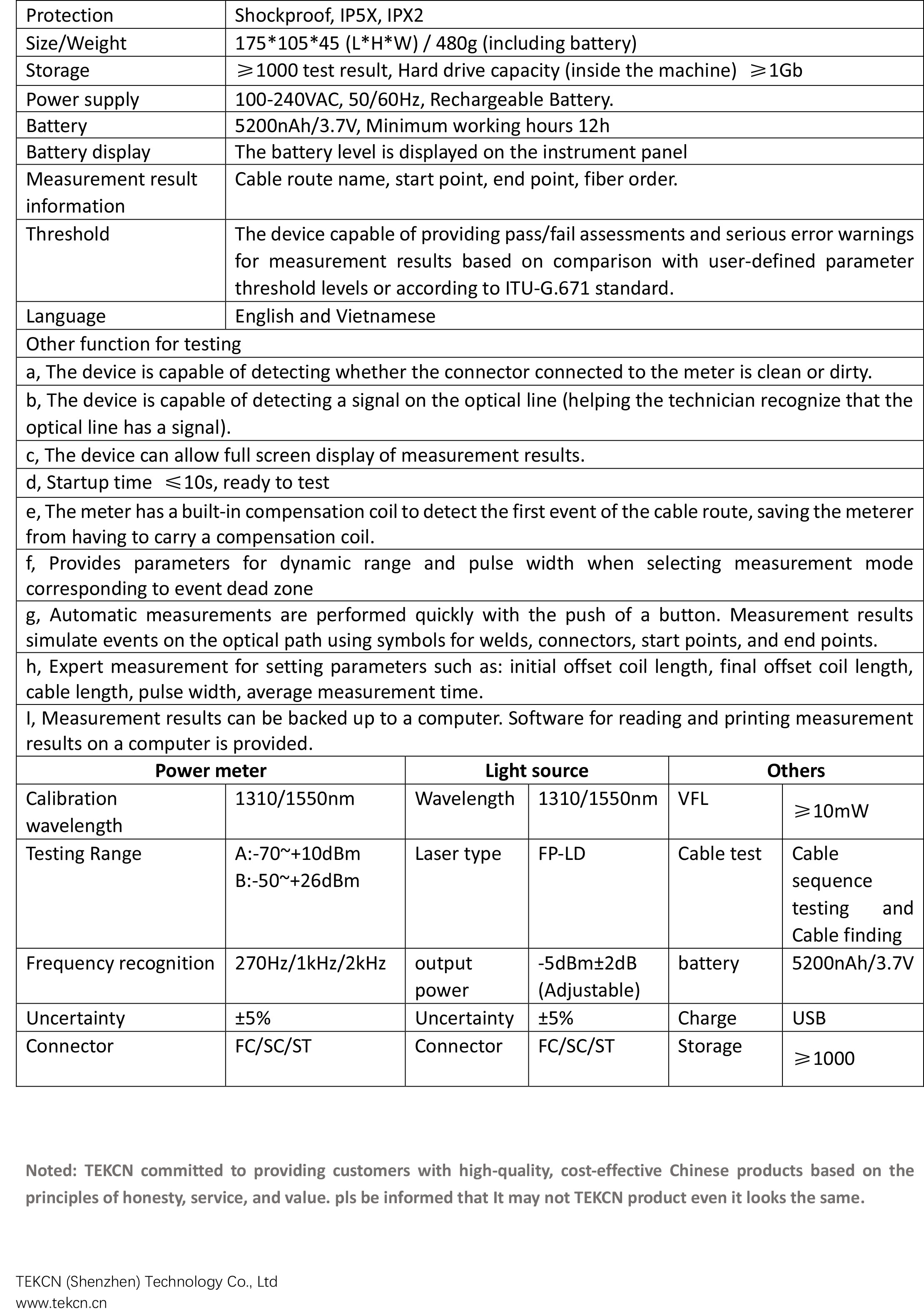

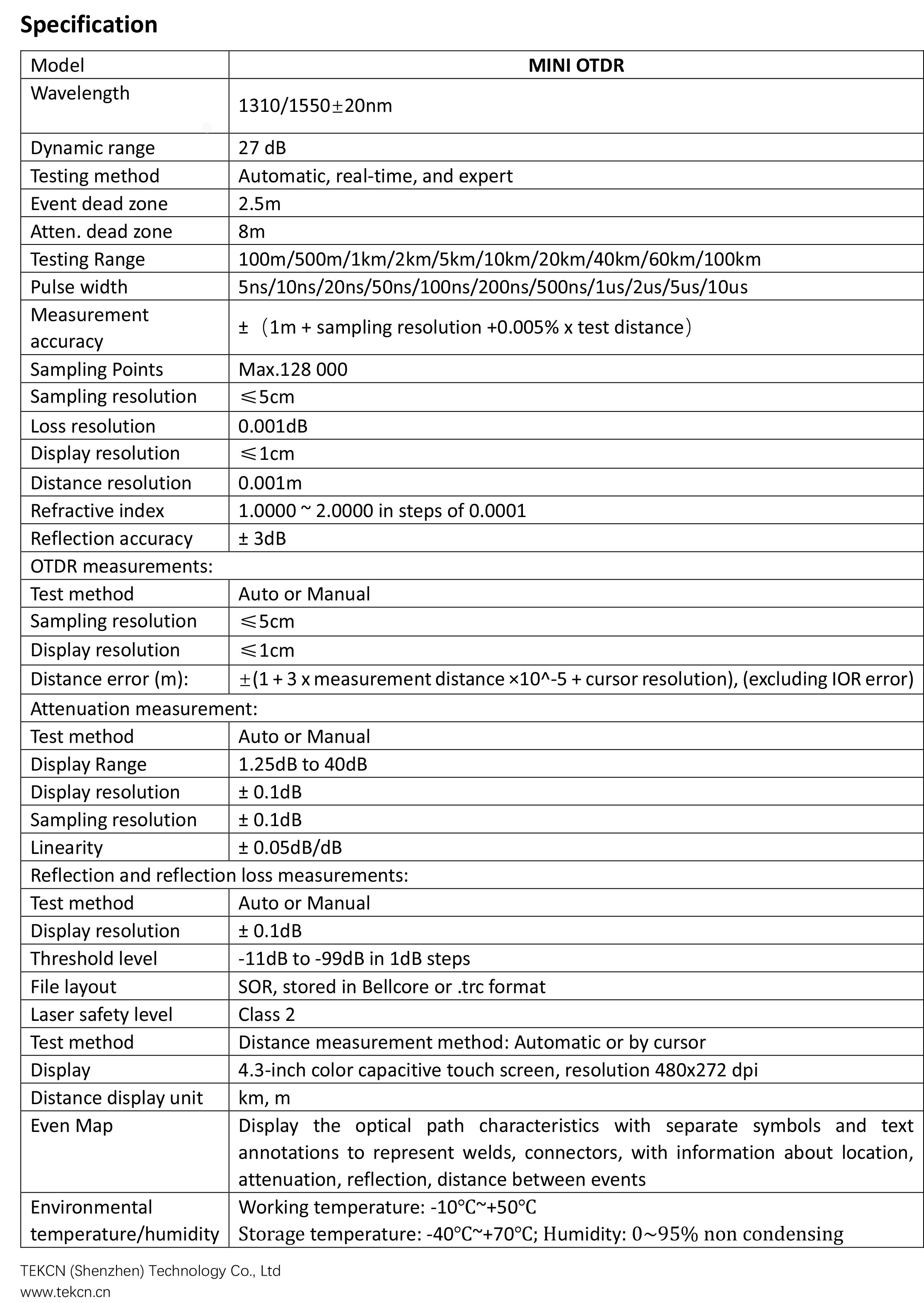

Specification：
