TEKCN V10 optical fiber VFL Visual fiber locator

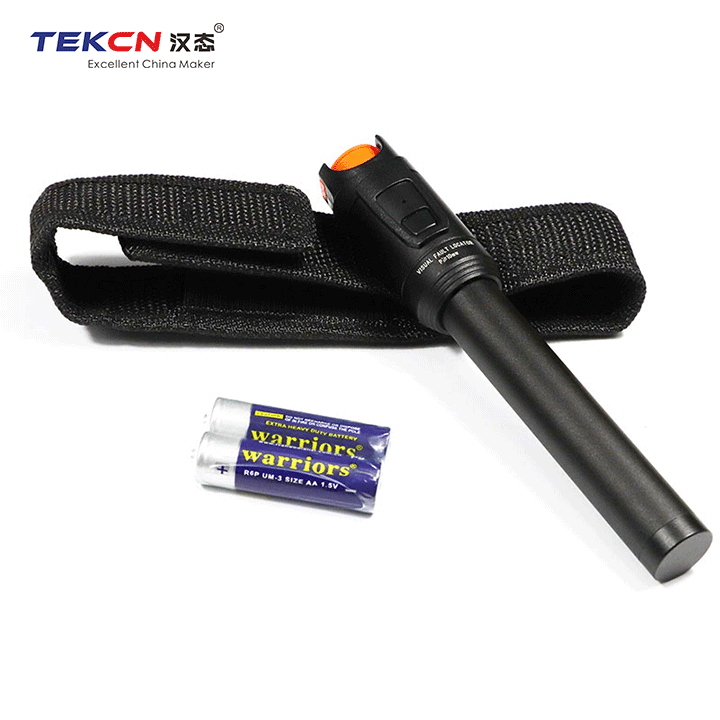

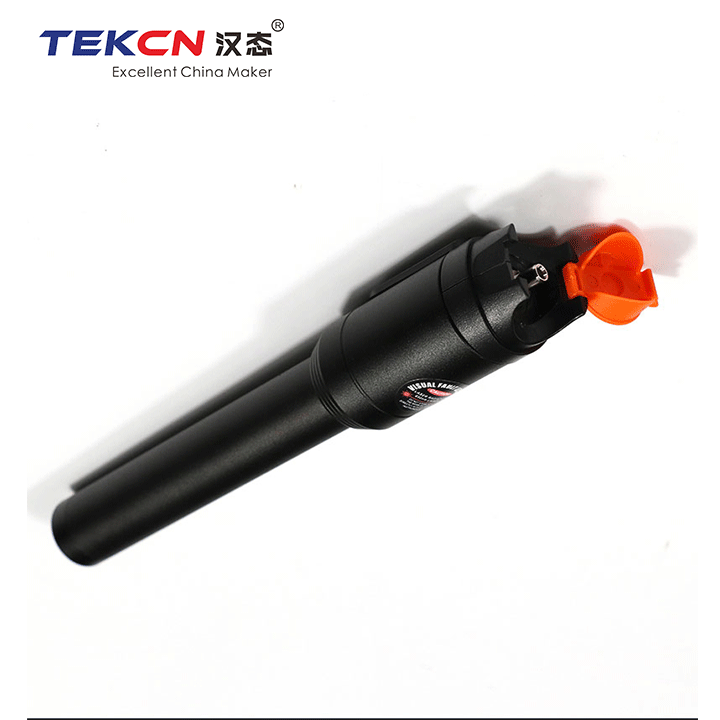

TEKCN V10 Visual Fault Locator (VFL) is an essential tool for testing cable continuity and locating visual faults. By emitting a laser beam of red light, the VFL quickly illuminates fiber breaks, damaged connectors, defective splices and tight fiber bends. Continuous or flashing mode identifies a fault or indicates the other end of the fiber for verifying continuity. The VFL features an integrated 2.5mm adapter for easy connection to SC, ST and FC connectors and an optional 1.25mm universal adapter for connection to LC and MU connectors.
Specification:
Central Wavelength | 650nm±10nm (635nm can be required on request) |
Emitter Type | FP-LD |
Output Power (mW) | 1 or 30 |
Distance of fiber identification | 1 ~ 30 km depend on customer requirement |
Optical Connector | 2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer’s requests |
Operating Model | Both CW and Pulse available |
Pulse Frequency | 2~3Hz |
Power Supply | 2 AA alkaline batteries |
Battery Operating Time | 650nm@1mw ≥65hours 650nm@10mw≥15hours Test with Panasonic LR6 AA ALKALINE battery |
Operating Temperature | -10~+45 |
Storage Temperature | -40~+70 |
