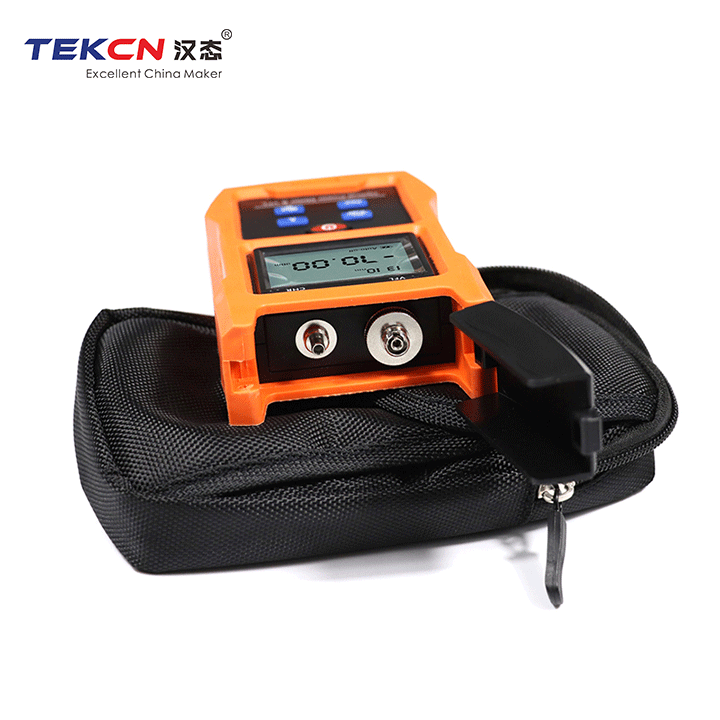

TEKCN TC-200 optical fiber Power meter with VFL
TEKCN TC-200 optical fiber Power meter with VFL
A fiber optic power meter is a device used to measure the optical power in a fiber optic system. It is an essential tool for technicians and engineers working with fiber optic networks, as it allows them to ensure that the optical signals are within the specified power levels. This measurement is crucial for maintaining the performance and reliability of the optical communication system.
Features
Ø Comfortable LCD display and optional backlight LCD display supports night operation;
Ø Power measurements in dBm or mw and insertion loss in dB;
Ø Reference power level storage (Ref Setting)
Ø Auto off function
Ø Result Record and USB interface
Ø Low battery consumption, more than 200 hours continual operation time with Li-On
rechargeable battery.
Ø Rubber sheathed body and connector protective cover, anti-shock, anti-dust, anti-water and wear-resistant.
Applications
Fiber optic power meters are used in various applications, including telecommunications, data centers, cable TV networks, and fiber optic sensor systems.
Specification:
| Power meter function | |
| Power measurement range (dBm) | -70~+10 or -50~+26 |
| Wavelength measurement range | 800-1700 |
| Calibrate wavelength (nm) | 850, 1300, 1310, 1490, 1550, 1625 |
| Probe type | InGaAs |
| Application fiber type | SM, MM |
| Resolving power (dBm) | 0.01 |
| Testing unit | mW/μW/nW/dBm/dB |
| Measurement accuracy (dB) | ±0.25dB (2%) @25℃ (±0.5dB @850nm) |
| VFL function | |
| Laser type | FP-LD |
| Working wavelength | 650nm |
| Output power | ＞10mW |
| Flashing function | have, 2Hz |
| Other functions | |
| Operation temperature | -10~+45 |
| Storage temperature | -20~+65 |
| Power supply | Build-in chargeable battery |
| Continuous working hours | ≥50 hours power meter and VFL working together ＞200 hours only power meter working |
| Connector | FC,SC for power meter, 2.5mm Universal interface for VFL |
| Weight | 300g |
