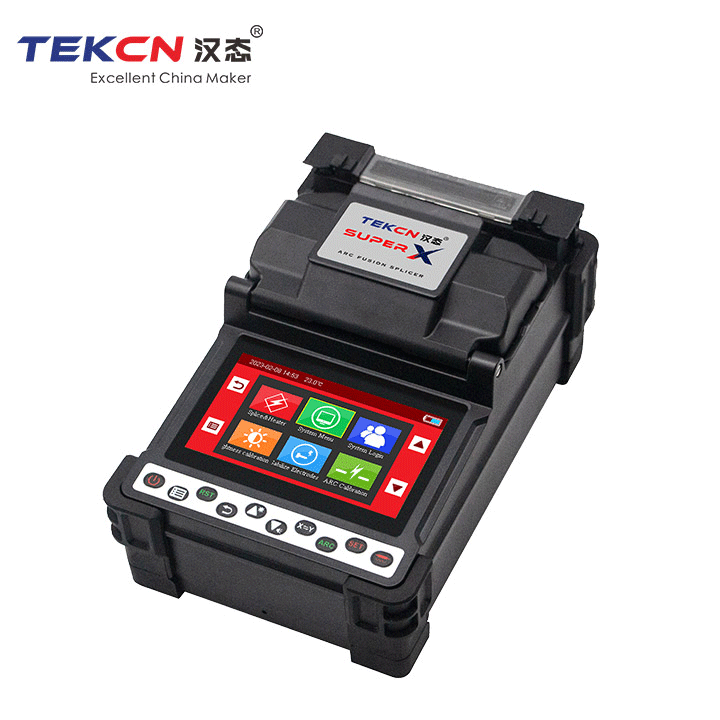

TEKCN Super X PAS alignment Fusion Splicer
TEKCN Super X PAS alignment Fusion Splicer
TEKCN Super X is a high-performance, high-quality, and cost-effective cladding alignment single core fiber fusion splicer. It features a mini handheld design, integrated buttons and touch screen, simple operation, low energy consumption, and can meet all the requirements of FTTx project.
Super X fusion splicer summarized
◆7s splicing, 15s heating
◆4 motors PAS alignment
◆Designed for FTTX / CATV
◆300X single axis view (X or Y)
◆4000mAh large capacity battery, supports 240 splice and heat cycles
Highlights for Super X fusion splicer
Exclusive UI design
Double V-groove
◆Double V-groove can help to fusion the fiber even the worker didn’t put the fiber on the bottom of the V-groove.
◆The worker can use directly without skill or experience.
◆Make your work faster and more efficient.
High electordes discharge control
Button+touch designed Easy to operate
ID electrodes
- Anti-counterfeit QR code
- Original electrodes ensures best ARC results
- Electrodes life ≥5000 discharges
Designed for use in harsh environments
Waterproof, Dustproof, Windproof, Anti-shock
ACCOMPLISHMENTS
- The first Chinese brand that has won the real core to core, 5G fiber (G654) and ribbon fiber fusion splicer bid in China telecom.
- Passed the strict testing of projects in different countries.
- Over 5000m high altitude testing
- Low temperature testing in - 40℃.
- Real core to core testing Automatically identify fiber types.
Specification:
Size | 208x137x102(mm), 1.1kg, 1.36kg with battery |
| Fiber Alignment | 4 motor PAS alignment |
| Fiber Type | Single fiber |
| Fiber Holder | 3 in 1 multifunctional fiber holder, compatible with all types of optical fibers such as bare fiber, drop cable, jumper/patch cord, pigtail etc |
| Applicable Fiber | SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-TG.655), BI(ITU-T G.657) |
| Fiber clading diameter | 80-150 (μm) |
| Fiber Coating diameter | 100-1000 (μm) |
| Cleave Length | 8-16 mm |
| Splice mode | Total 100 modes, support self-defined modes and parameters |
| Splicing time | 7s (SM Fast) |
| Heating mode | Total 20 modes, support self-defined modes and parameters |
| Heating time | 15s |
Application protection sleeve | 10-60mm |
| Splice image storage | Max. 300 (Automatic Loop Storage) |
| Splice result storage | Max. 10000 (Automatic Loop Storage) |
| Average splicing loss | SM: 0.02dB, MM: 0.01dB, DS: 0.04dB, NZ/NZDS: 0.04dB, BI 0.02dB ( ITU-T standard) |
| Return loss | ＞60dB |
| Loss estimation mode | High precision loss estimation |
| Fiber tensile test force | 2N |
| Display | 4.3 inch 480x272 pixels display, with touch screen |
| Visual system | X and Y dual view display 130X on the same screen; X or Y single view independent display at 300x magnification |
| Connection port | high speed USB port |
| Electrodes life | Typical 5000 splices |
| Power supply | AC100-240V, 50/60Hz |
| Battery | 4000mAh high-capacity battery, supporting continuous splicing and heating for more than 240 times; Standard charging time of 3 hours (2 hours to charge to 80% ) |
| Operation condition | Altitude: 0-5000m, Temperature: -20 to 50℃ Humidity: 0-95%RH, Max. wind 15m/sec |
| Storage condition | Temperature: -40 to 80℃ (Battery: -10 to 40℃ ) Humidity: 0-95%RH |
